SpringBoot自动配置

发表于 • 字数统计:

SpringBoot的一个很重要的特性就是自动配置，使用注解，让服务不再需要xml等各种配置文件
然后使用main方法一键启动

@SpringBootApplication

@SpringBootApplication 注解是 SpringBoot 的源头，一切都要从该注解开始说起

标注在类上时，表示该类是 SpringBoot 的主配置类，并从该类中的 main 方法来启动 SpringBoot 应用

注解源码如下：

1
2
3
4
5
6
7
8
9
10
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan(excludeFilters = {
		@Filter(type = FilterType.CUSTOM, classes = TypeExcludeFilter.class),
		@Filter(type = FilterType.CUSTOM, classes = AutoConfigurationExcludeFilter.class) })
public @interface SpringBootApplication {

可以看出主要包含了三个注解：

  • @SpringBootConfiguration
  • @ComponentScan
  • @EnableAutoConfiguration

@SpringBootConfiguration

1
2
3
4
5
6
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Configuration
public @interface SpringBootConfiguration {
}

看 @SpringBootConfiguration 的源码发现其实就是一个 @Configuration 注解，表示这是一个 SpringBoot 的配置类

@ComponentScan

@ComponentScan 表示开启组件扫描

默认是扫描当前类下的package。将 @Controller/@Service/@Component/@Repository 等注解加载到IOC容器中

@EnableAutoConfiguration

@EnableAutoConfiguration 表示开启自动配置，SpringBoot 自动配置的原理都在这个注解中

1
2
3
4
5
6
7
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@AutoConfigurationPackage
@Import(AutoConfigurationImportSelector.class)
public @interface EnableAutoConfiguration {

@EnableAutoConfiguration 又主要包含 @Import、@AutoConfigurationPackage 俩个注解，先看下重点 @Import 这个注解

@Import

@Import 注解是用来导入配置类或者一些需要前置加载的类，可以将多个配置类融合成一个配置类

1
2
3
4
5
6
7
8
9
10
11
12
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface Import {

	/**
	 * {@link Configuration}, {@link ImportSelector}, {@link ImportBeanDefinitionRegistrar}
	 * or regular component classes to import.
	 */
	Class<?>[] value();

}

看代码可以看出，有三种使用方式：

  • 导入普通 Java 类，导入的类会被加载为 Bean
  • 导入 ImportSelector 接口实现
  • 导入 ImportBeanDefinitionRegistrar 接口实现

  1. ImportSelector

    1
    2
    3
    4
    5
    6
    7
    8
    9
    public interface ImportSelector {

    	/**
    	* Select and return the names of which class(es) should be imported based on
    	* the {@link AnnotationMetadata} of the importing @{@link Configuration} class.
    	*/
    	String[] selectImports(AnnotationMetadata importingClassMetadata);

    }

    接口中只有一个 selectImports 方法，用于返回全类名数组，会把返回数组中的类全部导入

  2. ImportBeanDefinitionRegistrar

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
      public interface ImportBeanDefinitionRegistrar {

    	/**
    	* Register bean definitions as necessary based on the given annotation metadata of
    	* the importing {@code @Configuration} class.
    	* <p>Note that {@link BeanDefinitionRegistryPostProcessor} types may <em>not</em> be
    	* registered here, due to lifecycle constraints related to {@code @Configuration}
    	* class processing.
    	* @param importingClassMetadata annotation metadata of the importing class
    	* @param registry current bean definition registry
    	*/
    	public void registerBeanDefinitions(
    			AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry);

    }

    registerBeanDefinitions 它可以手动注册bean到容器中

AutoConfigurationImportSelector.class

AutoConfigurationImportSelector.class 类实现了 ImportSelector 接口，其中的核心方法是 selectImports，来返回需要导入的组件的全类名数组

  • selectImports

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    @Override
    public String[] selectImports(AnnotationMetadata annotationMetadata) {
    	if (!isEnabled(annotationMetadata)) {
    		return NO_IMPORTS;
    	}
    	AutoConfigurationMetadata autoConfigurationMetadata = AutoConfigurationMetadataLoader
    			.loadMetadata(this.beanClassLoader);
    	AnnotationAttributes attributes = getAttributes(annotationMetadata);
    	//获取全类名数组
    	List<String> configurations = getCandidateConfigurations(annotationMetadata,
    			attributes);
    	configurations = removeDuplicates(configurations);
    	Set<String> exclusions = getExclusions(annotationMetadata, attributes);
    	checkExcludedClasses(configurations, exclusions);
    	configurations.removeAll(exclusions);
    	configurations = filter(configurations, autoConfigurationMetadata);
    	fireAutoConfigurationImportEvents(configurations, exclusions);
    	return StringUtils.toStringArray(configurations);
    }

  • getCandidateConfigurations

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    protected List<String> getCandidateConfigurations(AnnotationMetadata metadata,
    		AnnotationAttributes attributes) {
    	//获取EnableAutoConfiguration.class对应的全类名数组
    	List<String> configurations = SpringFactoriesLoader.loadFactoryNames(
    			getSpringFactoriesLoaderFactoryClass(), getBeanClassLoader());
    	Assert.notEmpty(configurations,
    			"No auto configuration classes found in META-INF/spring.factories. If you "
    					+ "are using a custom packaging, make sure that file is correct.");
    	return configurations;
    }

    protected Class<?> getSpringFactoriesLoaderFactoryClass() {
    	return EnableAutoConfiguration.class;
    }

  • loadFactoryNames

    1
    2
    3
    4
    5
    public static List<String> loadFactoryNames(Class<?> factoryClass, @Nullable ClassLoader classLoader) {
    	String factoryClassName = factoryClass.getName();
    	//返回 META-INF/spring.factories 文件下 EnableAutoConfiguration.class 对应的所有值
    	return loadSpringFactories(classLoader).getOrDefault(factoryClassName, Collections.emptyList());
    }

  • loadSpringFactories

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    //从当前项目的类路径中获取所有 META-INF/spring.factories 这个文件下的信息。
    private static Map<String, List<String>> loadSpringFactories(@Nullable ClassLoader classLoader) {
    	MultiValueMap<String, String> result = cache.get(classLoader);
    	if (result != null) {
    		return result;
    	}

    	try {
    		//FACTORIES_RESOURCE_LOCATION:META-INF/spring.factories
    		Enumeration<URL> urls = (classLoader != null ?
    				classLoader.getResources(FACTORIES_RESOURCE_LOCATION) :
    				ClassLoader.getSystemResources(FACTORIES_RESOURCE_LOCATION));
    		result = new LinkedMultiValueMap<>();
    		while (urls.hasMoreElements()) {
    			URL url = urls.nextElement();
    			UrlResource resource = new UrlResource(url);
    			Properties properties = PropertiesLoaderUtils.loadProperties(resource);
    			for (Map.Entry<?, ?> entry : properties.entrySet()) {
    				String factoryClassName = ((String) entry.getKey()).trim();
    				for (String factoryName : StringUtils.commaDelimitedListToStringArray((String) entry.getValue())) {
    					result.add(factoryClassName, factoryName.trim());
    				}
    			}
    		}
    		cache.put(classLoader, result);
    		return result;
    	}
    	catch (IOException ex) {
    		throw new IllegalArgumentException("Unable to load factories from location [" +
    				FACTORIES_RESOURCE_LOCATION + "]", ex);
    	}
    }

META-INF/spring.factories

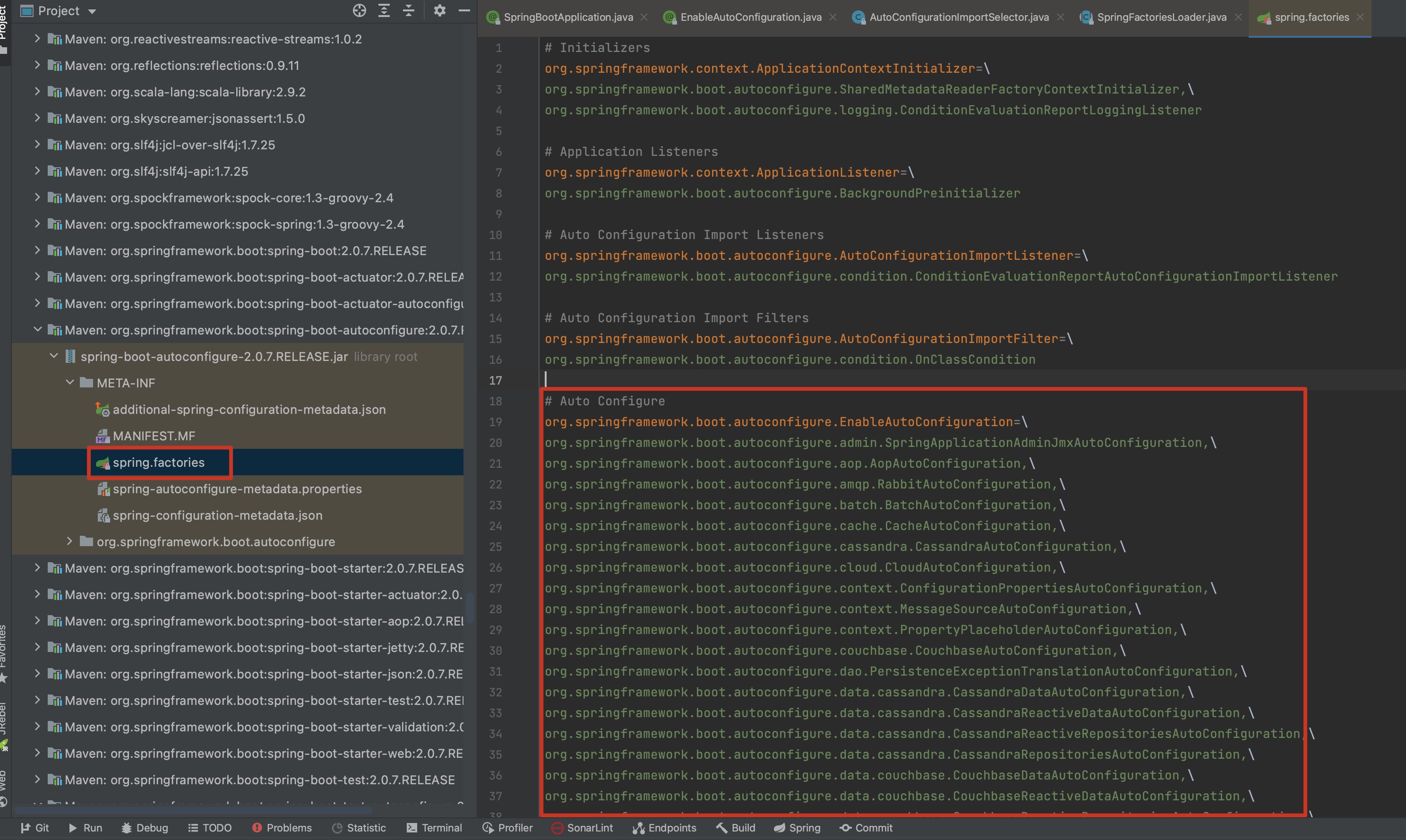

META-INF/spring.factories 在很多第三方依赖中都会有这个文件，第三方依赖通过这个文件并配置 EnableAutoConfiguration 参数，然后自动配置会把这个参数下面的所有类都配置到 Spring 容器中，如图


@AutoConfigurationPackage

@EnableAutoConfiguration 注解中的另一个注解 @AutoConfigurationPackage，是用来自动配置包的，将主配置类 @SpringBootConfiguration 标注的类，所在包及下面所有子包里面的所有组件扫描到 Spring 容器中

1
2
3
4
5
6
7
8
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@Import(AutoConfigurationPackages.Registrar.class)
public @interface AutoConfigurationPackage {

}

可以看到，AutoConfigurationPackage 注解依然使用了 import 注解，不过使用的是 ImportBeanDefinitionRegistrar 接口实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
static class Registrar implements ImportBeanDefinitionRegistrar, DeterminableImports {

	@Override
	//把所在包及其子包里边的组件扫描注册到Spring容器中
	public void registerBeanDefinitions(AnnotationMetadata metadata,
			BeanDefinitionRegistry registry) {
		register(registry, new PackageImport(metadata).getPackageName());
	}

	@Override
	public Set<Object> determineImports(AnnotationMetadata metadata) {
		return Collections.singleton(new PackageImport(metadata));
	}

}

总结

SpringBoot的自动装配是由 @EnableAutoConfiguration 注解来实现的，而 @EnableAutoConfiguration 注解又是通过 @AutoConfigurationPackage 和 @Import(AutoConfigurationImportSelector.class) 来实现服务自身的自动配置和第三方依赖的自动配置

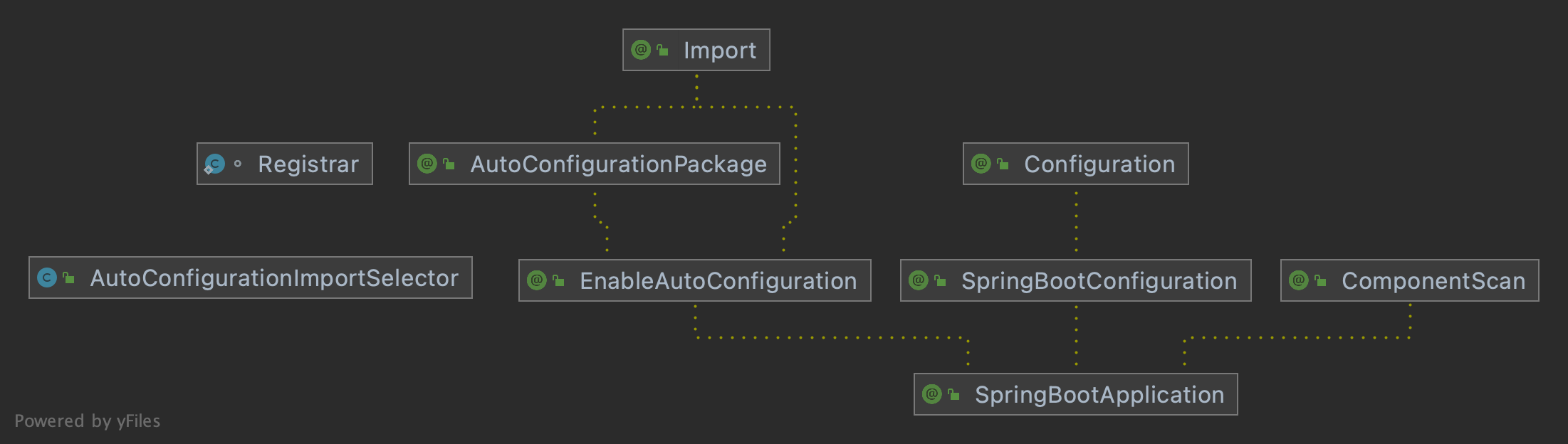

注解关系如图：
